Ott Edgebanders

Tornado Plus

A flawless edge with an invisible glue line — in a 6.3-meter frame.

The Tornado Plus pairs the patented Combimelt glue system with a 6.3-meter frame that includes buffing, sensitive-edge spray mist, release agent application, and nesting capability for pre-drilled panels as standard equipment. Where the Pacific Plus is built for tight floors, the Tornado Plus is built for shops that want more of the Ott option set included from day one.

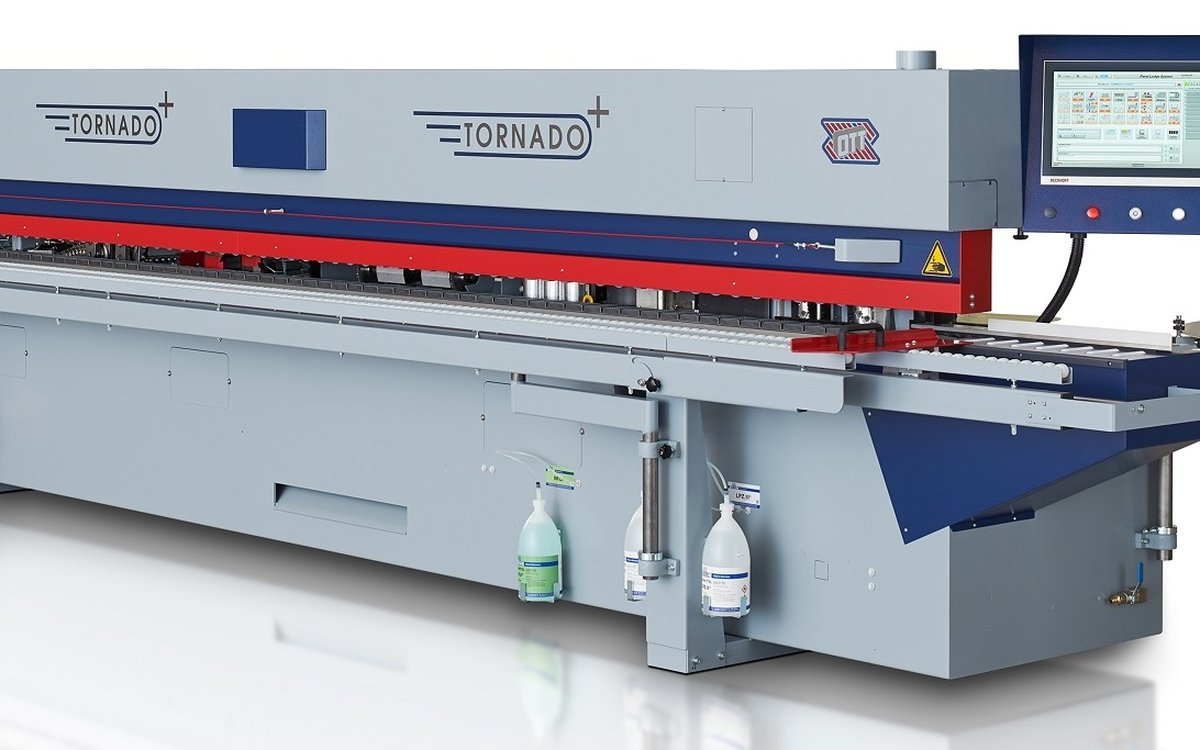

Ott Tornado Plus edgebander — 6.3-meter frame with buffing, spray mist, and nesting capability as standard
Machine Length
6.3 m
Feed Speed
12–20 m/min
Edge Thickness
0.3–15 mm
Panel Length (min)
150 mm
Panel Width (min)
70 mm
Panel Thickness
8–60 mm
Overview

More Options Standard, Less Configuration Required

The Tornado Plus is the Ott edgebander for shops that don't want to choose between options and budget. The 6.3-meter frame accommodates a more complete set of standard equipment than the smaller Pacific Plus — including buffing, spray mist devices for release agent and sensitive-edge materials, and nesting capability for pre-drilled panels.

Every Ott edgebander shares the same patented top-driven Combimelt glue system, the same servo-controlled workstations, and the same invisible-glue-joint quality. The Tornado Plus distinguishes itself by including features that are optional or unavailable on the Pacific Plus, while remaining significantly more compact than the FlexEdge, Storm Plus, StrongEdge, and TopEdge models.

For cabinet manufacturers, furniture producers, and architectural millwork shops with moderate floor space and varied production needs, the Tornado Plus is the model that includes "the option I needed" before you knew you needed it.

The Tornado Plus is Right For You If…

  • You can accommodate a 6.3-meter frame and want more features included as standard
  • Your production runs include sensitive-edge materials that benefit from spray mist application
  • You apply release agent to panels and want this automated rather than manual
  • You handle pre-drilled panels and need nesting capability
  • You want buffing integrated into the same machine instead of a separate process
Features & Packages

Standard Equipment and Available Packages

Tornado Plus includes buffing, spray mist devices, release agent application, and nesting capability as standard. Available packages add automation features, advanced trimming, and grooving for specific production requirements.

Standard Features
Included with every Tornado Plus
  • CombiMelt gluing system for EVA and PUR with 1.5L container and filling pipe
  • PLC controlled with 18.5-inch color touch screen
  • Pre-milling unit
  • Automatic edge magazine
  • Automatic coil magazine with guillotine
  • Double end trim, automatic tiltable 0° / 3°
  • Rough trim and fine trim units
  • Automatic corner rounding
  • Contour scraper with extraction
  • Flat scraping unit
  • Spray mist device for release agent (applied to panel before pre-mill station)
  • Spray mist device for cleaning agent (applied to panel before buffing station)
  • Spray mist device for sensitive edge materials (applied to edge surface)
  • Buffing unit
  • Nesting option for pre-drilled panels
  • Electrical-UL certification
Professional Package
Comprehensive automation, advanced trimming, and feed-speed upgrades
  • Heated infeed guide
  • Infeed slide pusher for panels
  • Air cushion table with vacuum generator (1800 × 600 mm) at feed entrance
  • PCD tools for pre-milling (Ø 85mm, height 62mm)
  • Coil magazine for 2 coils
  • Two-position automatic edge selection with automatic height adjustment
  • High-gloss set for flush trimming panels with protective film still applied (no manual copy wheel adjustments)
  • Two-position automatic scraper changer
  • Set of quick-change motors
  • Narrow piece set (60 mm) with support rollers distributed over machine length
  • Equipment for 20 m/min feed speed upgrade
  • Preparation for later installation of a panel return system
  • Spray mist nozzles for antistatic agent
  • Structure brushing unit
  • Sanding unit
  • Horizontal aggregate grooving unit
  • Vertical aggregate grooving unit
  • Synchro-Flex driven belt top pressure, synchronized with feed
PUR Start Package
Add PUR glue capability without changing machines
  • Additional PUR hopper with quick-change head
  • Dry box to preserve PUR glue
Technical Specifications

Tornado Plus Specifications

Machine Length
6.3 meters (20.7 feet)
Feed Speed
12–18 meters/minute standard (20 m/min optional)
Edge Thickness
0.3 to 15 mm
Minimum Panel Length
150 mm
Minimum Panel Width
70 mm
Panel Thickness
8 to 60 mm
Glue System
CombiMelt for EVA and PUR, 1.5 L container with filling pipe
Control System
PLC controlled with 18.5-inch color touch screen
Workstation Control
Servo-controlled (automatic adjustment for panel thickness, edge thickness, and profile changes)
Glue Dosage
Stepper-motor controlled, program-driven for invisible glue joint
Spray Mist Devices
Three standard: release agent, cleaning agent, sensitive-edge surface
Buffing Unit
Included as standard equipment
Nesting Capability
Included as standard (pre-drilled panels)
Electrical Certification
UL listed
Origin
Manufactured in Lambach, Austria
Why NuTek

Backed by the Importer Difference

NuTek is Ott's North American importer. Every Tornado Plus we sell is backed by direct factory access, factory-trained service technicians, and a parts inventory stocked in Bedford, Ohio. Phone support Monday through Friday 8 AM to 5 PM EST, with after-hours support to 8 PM EST.

Other Ott Models

If Tornado Plus Isn't the Right Fit

Every Ott edgebander shares the same quality and Combimelt glue system. Choose the frame size and option capacity that matches your floor space and production needs.

Get a Tornado Plus Quote

Schedule a consultation to discuss configuration, options, financing, and delivery. We can also arrange a live demo at our Bedford showroom or via video.
