Home › Machines › Ott Edgebanders › Storm Plus
Ott Edgebanders

Storm Plus

A 7.8-meter frame with the option capacity to grow with you.

The Storm Plus pairs the patented Combimelt glue system with a 7.8-meter frame and TransStart automated infeed compatibility. Servo-controlled 4-position radius scrapers offer twice the profile capacity of smaller models, and the expanded frame accommodates a broader range of option configurations for shops with diverse production needs.

Request a Quote Call (216) 904-0215
Ott Storm Plus edgebander — 7.8-meter frame with TransStart compatibility and servo-controlled 4-position radius scrapers
Machine Length
7.8 m
Feed Speed
20 m/min
Edge Thickness
0.3–15 mm
Panel Length (min)
150 mm
Panel Width (min)
70 mm
Panel Thickness
8–60 mm
Overview

More Frame, More Options, More Profile Capacity

The Storm Plus is a 7.8-meter Ott edgebander built for shops with diverse production requirements. Like the FlexEdge, it's TransStart-ready for automated panel handling. Unlike the FlexEdge, it features servo-controlled 4-position radius scrapers — twice the profile capacity without manual tool changes.

The expanded frame accommodates more option configurations: additional grooving units, more aggregate positions, and the floor space for buyers who know they'll add capabilities over time. For cabinet manufacturers running multiple radius profiles or shops planning to add automation in phases, the Storm Plus is the model that scales with the business.

Every Ott edgebander shares the same patented top-driven Combimelt glue system and servo-controlled workstations. The Storm Plus adds frame size and option capacity — not capability tier.

The Storm Plus is Right For You If…

  • You run multiple radius profiles and want servo-controlled 4-position scrapers as standard
  • You want TransStart automated infeed compatibility and the floor space to accommodate it
  • You plan to add grooving, sanding, or brushing units over time and want the option capacity
  • Your panel sizes stay within 8–60 mm thickness and edge thickness within 0.3–15 mm
  • You're integrating an edgebander into a larger production cell with panel return automation
Features & Packages

Standard Equipment and Available Packages

Storm Plus units sold by NuTek Machinery in North America ship with comprehensive standard equipment including PUR-ready Combimelt, servo-controlled 4-position radius scrapers, VOC-free spray mist devices, buffing, nesting capability, and TransStart-ready preparation. Available options add advanced tooling, additional aggregate units, and grooving for specific production requirements.

Standard Features
Included with every Storm Plus sold by NuTek Machinery
  • CombiMelt gluing system for EVA and PUR with 1.5L container and filling pipe
  • Additional PUR hopper with quick-change head
  • Dry box for PUR glue preservation
  • PLC controlled with 18.5-inch color touch screen
  • Pre-milling unit
  • Automatic edge magazine
  • Automatic coil magazine with guillotine
  • Double end trim, automatic tiltable 0° / 3°
  • Rough trim and fine trim units
  • Two-motor automatic corner rounding
  • Servo-controlled 4-position radius scraper
  • Servo-controlled flat glue scraper
  • Spray mist device for release agent (VOC-free, applied to panel before pre-mill station)
  • Spray mist device for cleaning agent (VOC-free, applied to panel before buffing station)
  • Spray mist device for sensitive edge materials (VOC-free, applied to edge surface)
  • Buffing unit
  • Nesting option for pre-drilled panels
  • TransStart automated infeed compatibility (ready for future automation)
  • Electrical-UL certification
Available Options
Configure the Storm Plus to your specific production needs
  • Heated infeed guide
  • Air cushion table with vacuum generator (1800 × 600 mm) at feed entrance
  • PCD tools for pre-milling (Ø 85mm, height 62mm)
  • Additional corner rounding motors for multi-profile setup
  • Automatic tool-changing 3-radius corner rounding motors
  • Coil magazine for 2 coils
  • Two-position automatic edge selection with automatic height adjustment
  • Set of quick-change motors
  • Narrow piece set (60 mm) with support rollers distributed over machine length
  • Preparation for later installation of a panel return system
  • Spray mist nozzles for antistatic agent
  • Structure brushing unit
  • Sanding unit
  • Horizontal aggregate grooving unit
  • Vertical aggregate grooving unit
  • Synchro-Flex driven belt top pressure, synchronized with feed
Technical Specifications

Storm Plus Specifications

Machine Length
7.8 meters (25.6 feet)
Feed Speed
20 meters/minute standard
Edge Thickness
0.3 to 15 mm
Minimum Panel Length
150 mm
Minimum Panel Width
70 mm
Panel Thickness
8 to 60 mm
Glue System
CombiMelt for EVA and PUR, 1.5 L container with filling pipe, ships PUR-ready with additional hopper and dry box
Control System
PLC controlled with 18.5-inch color touch screen
Workstation Control
Servo-controlled (automatic adjustment for panel thickness, edge thickness, and profile changes)
Scrapers
Servo-controlled 4-position radius scraper and servo-controlled flat glue scraper
Corner Rounding
Two-motor automatic corner rounding standard
Glue Dosage
Stepper-motor controlled, program-driven for invisible glue joint
Spray Mist Devices
Three standard with VOC-free liquids: release agent, cleaning agent, sensitive-edge surface
Buffing Unit
Included as standard equipment
Nesting Capability
Included as standard (pre-drilled panels)
Automation Compatibility
TransStart automated infeed ready
Electrical Certification
UL listed
Origin
Manufactured in Lambach, Austria
Why NuTek

Backed by the Importer Difference

NuTek is Ott's North American importer. Every Storm Plus we sell is backed by direct factory access, factory-trained service technicians, and a parts inventory stocked in Bedford, Ohio. Phone support Monday through Friday 8 AM to 5 PM EST, with after-hours support to 8 PM EST.

Other Ott Models

If Storm Plus Isn't the Right Fit

Every Ott edgebander shares the same quality and Combimelt glue system. Choose the frame size and option capacity that matches your floor space and production needs.

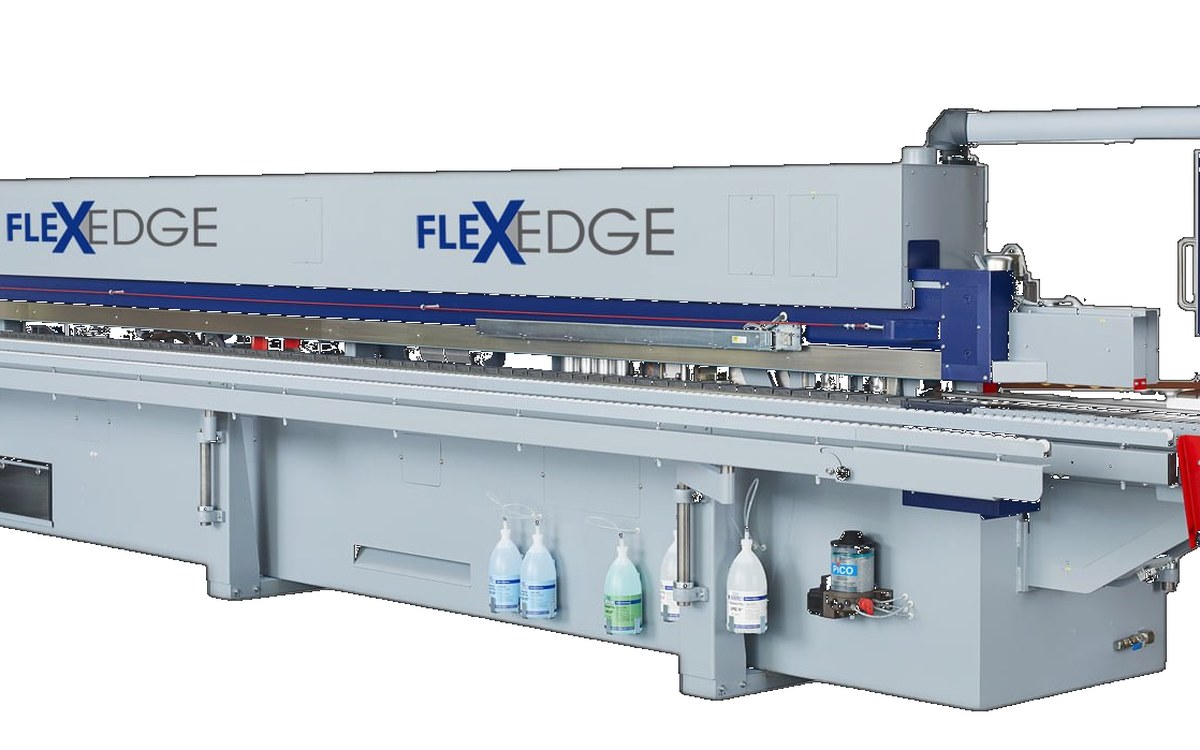

Ott FlexEdge edgebander
Ott · 7.0 m Frame

FlexEdge

The next size down — 7-meter frame with TransStart compatibility and 2-position scrapers.

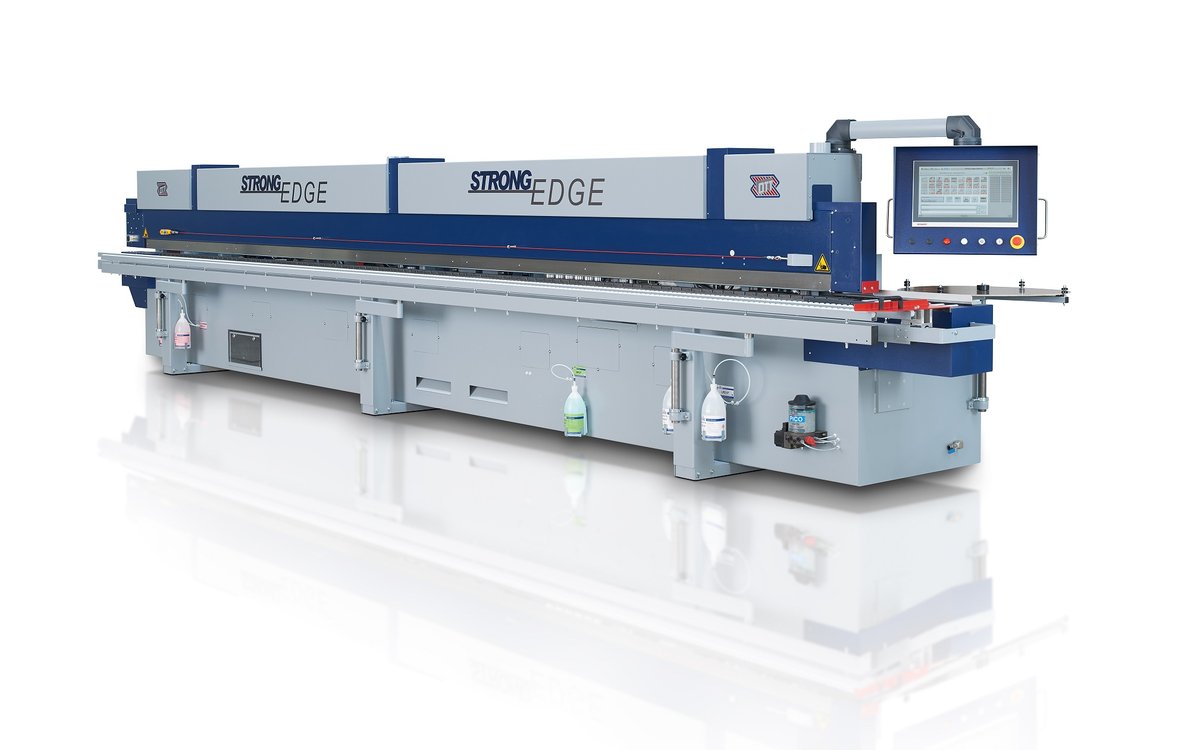

Ott StrongEdge edgebander
Ott · 8.6 m Frame

StrongEdge

The first model that handles 25 mm edges and panels up to 80 mm thick — for thick-edge applications.
Ott edgebanders complete lineup
Ott · All Six Models

Compare the Full Lineup

See Pacific Plus, Tornado Plus, FlexEdge, Storm Plus, StrongEdge, and TopEdge side by side.

Get a Storm Plus Quote

Schedule a consultation to discuss configuration, options, financing, and delivery. We can also arrange a live demo at our Bedford showroom or via video.

Request a Quote Call (216) 904-0215
