Ott Edgebanders

TopEdge XS · S · L

Three frame sizes with the optional DUO-CombiMelt dual-glue system.

The TopEdge is the most configurable Ott edgebander — three frame sizes (8.6 m, 9.3 m, and 10.3 m) with TransStart automated infeed compatibility and capacity for the broadest range of aggregate units in the lineup. The TopEdge is also the only Ott model offering the optional DUO-CombiMelt dual-glue system, which processes white and clear PUR simultaneously without changeover time between jobs.

Request a Quote Call (216) 904-0215

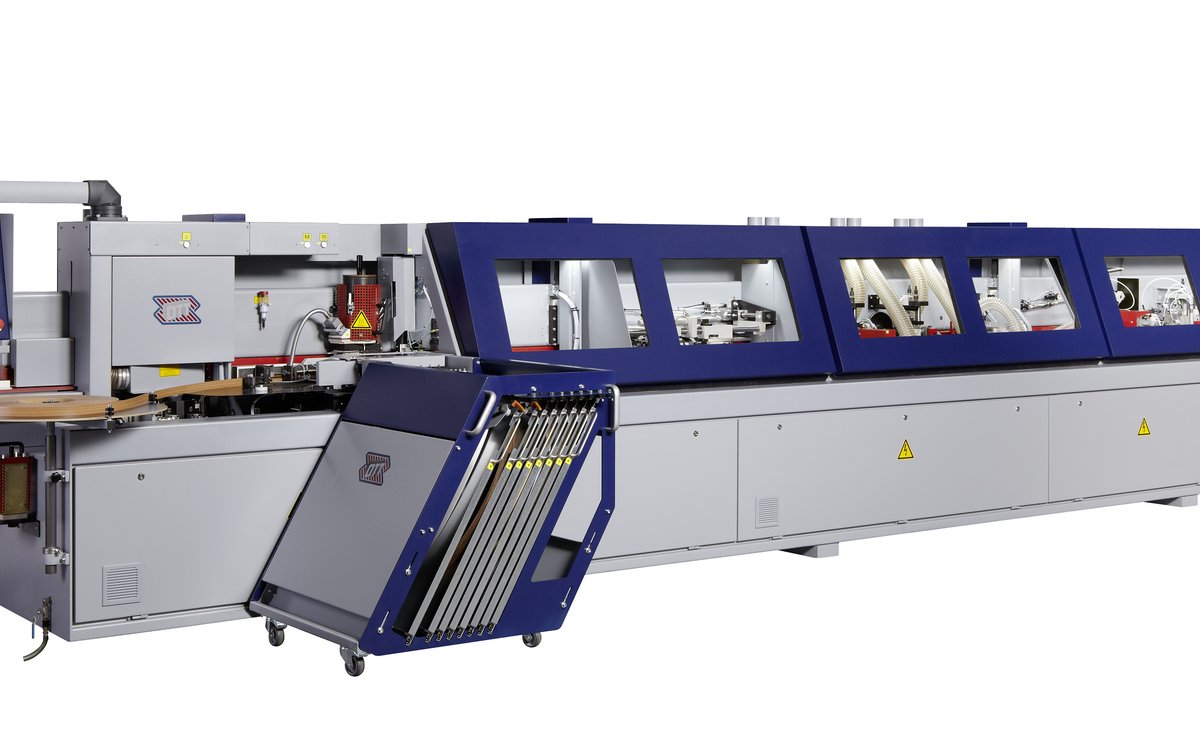

Ott TopEdge edgebander — three frame sizes with optional DUO-CombiMelt dual-glue system
Machine Length
8.6–10.3 m
Feed Speed
20 m/min
Edge Thickness
0.3–20 mm
Panel Length (min)
150 mm
Panel Width (min)
70 mm
Panel Thickness
8–80 mm
Overview

Three Frame Sizes. One Configurable Platform.

The TopEdge is the most configurable edgebander in the Ott lineup, offered in three frame sizes — XS at 8.6 meters, S at 9.3 meters, and L at 10.3 meters. The expanded frame lengths accommodate the broadest range of aggregate units in the lineup, from sanding and structure brushing to multiple grooving units and additional spray devices.

The TopEdge is also the only model in the Ott family that offers the optional DUO-CombiMelt dual-glue system. DUO-CombiMelt allows the machine to process white and clear PUR adhesives simultaneously — eliminating the changeover time between jobs that use different glue colors. For shops running mixed production, this is a meaningful productivity advantage.

Like every Ott edgebander, the TopEdge features the patented Combimelt glue system, servo-controlled workstations, servo-controlled 4-position radius scrapers, and TransStart automated infeed compatibility. The choice between frame sizes comes down to how much aggregate capacity your production needs.

The TopEdge is Right For You If…

  • You need DUO-CombiMelt for processing white and clear PUR without changeover time
  • You run a wide range of aggregate units (sanding, brushing, multiple grooving stations)
  • You process panels up to 80 mm thick with edges up to 20 mm
  • You have the floor space for an 8.6–10.3 meter machine and want maximum configuration flexibility
  • You're integrating an edgebander into an automated production cell at scale
Features & Packages

Standard Equipment and Available Packages

TopEdge units sold by NuTek Machinery in North America ship with comprehensive standard equipment: PUR-ready Combimelt, servo-controlled 4-position radius scrapers, VOC-free spray mist devices, buffing, nesting capability, and TransStart-ready preparation. Available options include the DUO-CombiMelt dual-glue system (TopEdge exclusive), advanced tooling, multiple aggregate positions, and grooving units.

Standard Features
Included with every TopEdge sold by NuTek Machinery
  • CombiMelt gluing system for EVA and PUR with 1.5L container and filling pipe
  • Additional PUR hopper with quick-change head
  • Dry box for PUR glue preservation
  • PLC controlled with 18.5-inch color touch screen
  • Pre-milling unit
  • Automatic edge magazine
  • Automatic coil magazine with guillotine
  • Double end trim, automatic tiltable 0° / 3°
  • Rough trim and fine trim units
  • Two-motor automatic corner rounding
  • Servo-controlled 4-position radius scraper
  • Servo-controlled flat glue scraper
  • Spray mist device for release agent (VOC-free, applied to panel before pre-mill station)
  • Spray mist device for cleaning agent (VOC-free, applied to panel before buffing station)
  • Spray mist device for sensitive edge materials (VOC-free, applied to edge surface)
  • Buffing unit
  • Nesting option for pre-drilled panels
  • TransStart automated infeed compatibility (ready for future automation)
  • Electrical-UL certification
Available Options
Configure the TopEdge to your specific production needs
  • DUO-CombiMelt dual-glue system (process white and clear PUR simultaneously — TopEdge exclusive)
  • Heated infeed guide
  • Air cushion table with vacuum generator (1800 × 600 mm) at feed entrance
  • PCD tools for pre-milling (Ø 85mm, height 62mm)
  • Additional corner rounding motors for multi-profile setup
  • Automatic tool-changing 3-radius corner rounding motors
  • Coil magazine for 2 coils
  • Two-position automatic edge selection with automatic height adjustment
  • Set of quick-change motors
  • Narrow piece set (60 mm) with support rollers distributed over machine length
  • Preparation for later installation of a panel return system
  • Spray mist nozzles for antistatic agent
  • Structure brushing unit
  • Sanding unit
  • Horizontal aggregate grooving unit
  • Vertical aggregate grooving unit
  • Synchro-Flex driven belt top pressure, synchronized with feed
Technical Specifications

TopEdge XS · S · L Specifications

Frame Sizes
XS: 8.6 m (28.2 ft) · S: 9.3 m (30.5 ft) · L: 10.3 m (33.8 ft)
Feed Speed
20 meters/minute standard
Edge Thickness
0.3 to 20 mm
Minimum Panel Length
150 mm
Minimum Panel Width
70 mm
Panel Thickness
8 to 80 mm
Glue System
CombiMelt for EVA and PUR, 1.5 L container with filling pipe, ships PUR-ready with additional hopper and dry box · Optional DUO-CombiMelt for simultaneous white and clear PUR processing
Control System
PLC controlled with 18.5-inch color touch screen
Workstation Control
Servo-controlled (automatic adjustment for panel thickness, edge thickness, and profile changes)
Scrapers
Servo-controlled 4-position radius scraper and servo-controlled flat glue scraper
Corner Rounding
Two-motor automatic corner rounding standard
Glue Dosage
Stepper-motor controlled, program-driven for invisible glue joint
Spray Mist Devices
Three standard with VOC-free liquids: release agent, cleaning agent, sensitive-edge surface
Buffing Unit
Included as standard equipment
Nesting Capability
Included as standard (pre-drilled panels)
Automation Compatibility
TransStart automated infeed ready
Electrical Certification
UL listed
Origin
Manufactured in Lambach, Austria
Why NuTek

Backed by the Importer Difference

NuTek is Ott's North American importer. Every TopEdge we sell is backed by direct factory access, factory-trained service technicians, and a parts inventory stocked in Bedford, Ohio. Phone support Monday through Friday 8 AM to 5 PM EST, with after-hours support to 8 PM EST.

Other Ott Models

If TopEdge Isn't the Right Fit

Every Ott edgebander shares the same quality and Combimelt glue system. Choose the frame size and option capacity that matches your floor space and production needs.

Ott StrongEdge edgebander
Ott · 8.6 m Frame · 25 mm Edges

StrongEdge

If you don't need DUO-CombiMelt but do need edges up to 25 mm — the StrongEdge handles thick-edge applications without the larger frame.
Ott Storm Plus edgebander
Ott · 7.8 m Frame

Storm Plus

For shops with thinner edge and panel requirements (up to 15 mm edges, 60 mm panels) and a smaller floor footprint.
Ott edgebanders complete lineup
Ott · All Six Models

Compare the Full Lineup

See Pacific Plus, Tornado Plus, FlexEdge, Storm Plus, StrongEdge, and TopEdge side by side.

Get a TopEdge Quote

Schedule a consultation to discuss configuration, options, financing, and delivery. We can also arrange a live demo at our Bedford showroom or via video.
